PHOTOCAD PRODUCT LINES

HIGHEST QUALITY LASER-CUT SMT STENCILS

For standard usage possibilities, the smallest components and maximum performance, choose a suitable SMT stencil for your individual needs from three product lines.

Photocad offers laser-cut SMT stencils inclusive of double-sided brushing and stencil check from just 49,- €.



OUR PRODUCT LINES

The perfect product for every usage possibility.

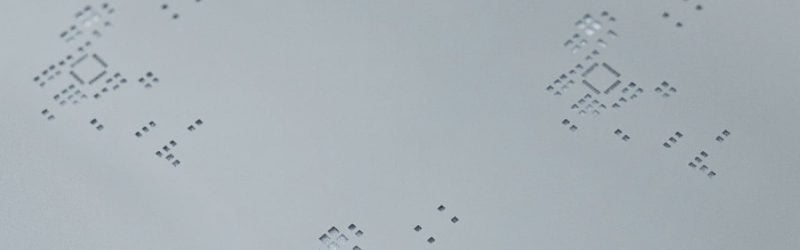

Laser-cut SMT stencils from Photocad ensure high-quality solder paste printing. The stainless steel that we use guarantees high accuracy and long service life. Various optional surface refinement methods additionally improve the release properties of the solder paste during printing.

PRODUCT LINES IN COMPARISON

We facilitate your selection, whilst helping you save money. Find the right SMT stencil for you now with the Photocad quick finder tool.


from 49,00 € from 70,00 € from 94,00 €
Component size from 0603 smaller than 0603 smaller than 0603
Fine-pitch from 0,5 smaller than 0,5 smaller than 0,5
BGA µBGA, QFN µBGA, QFN
Laser cut SMT stencil
Brushed on both sides
100% by Stencil Check
Shipping in archival sleeve (cardboard)
Electro-polished with automated system
Silicon nano coating
Order now Order now Order now
from 49,00 €
Component size from 0603
Fine-pitch from 0,5
BGA
Laser cut SMT stencil
Brushed on both sides
100% inspection by Stencil Check
Shipping in archival sleeve (cardboard)
Order now
from 70,00 €
Component size smaller than 0603
Fine-pitch smaller than 0,5
µBGA, QFN
Laser cut SMT stencil
Brushed on both sides
100% inspection by Stencil Check
Shipping in archival sleeve (cardboard)
Electro-polished with automated system
Order now
from 94,00 €
Component size smaller than 0,5
Fine-pitch smaller than 0,5
µBGA, QFN
Laser cut SMT stencil
Brushed on both sides
100% inspection by Stencil Check
Shippin in archival sleeve (cardboard)
Electro-polished with automated system
Silicon nano coating
Order now

The BASIC PLUS product line is particularly suitable for simply structured assemblies.

You will receive a laser-cut SMT stencil including double-sided brushing and stencil check – from 49,- €.

The ADVANCED product line is particularly suited for delicate structures and more sophisticated applications.

You will receive a laser-cut SMT stencil including double-sided brushing, stencil check and additional electro-polishing – from 70,- €.

The PERFORMANCE product line is particularly suited for the smallest components and maximum performance.

You will receive a laser-cut SMT stencil including double-sided brushing, stencil check and surface polishing – electropolishing and nano-coating for various printing processes – from 94,- €.
